Fire Alarm Control Panel

• Modular, decentralized structure
• Up to 16 loops - 4000 elements control panel
• TCP/IP interface
• Networkable
• Hardware & software redundancy
• Multi-zone extinguishing control panel

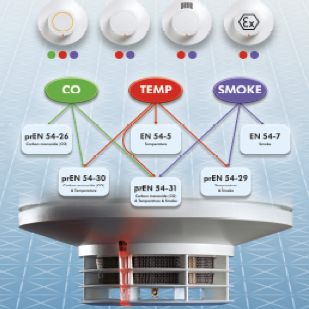

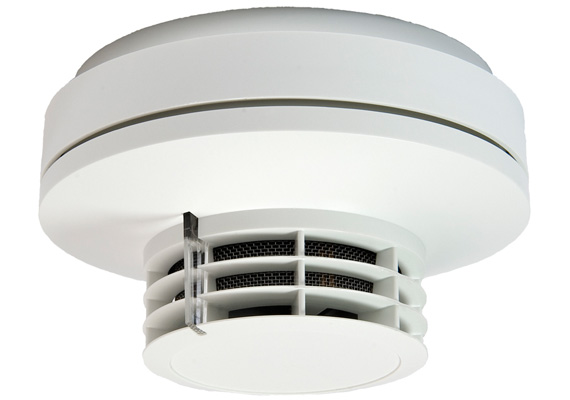

Multi Sensor Detector

CUBUS enables adopatablity to dynamic surrounding & Multi sensor controls False Alarms.

• Make - Shrack Seconet
• Model - MTD 533X
• Type - Intelligent
 Addressable
 Multisensor detector
• Protection Class IP44
• Approval - VDS

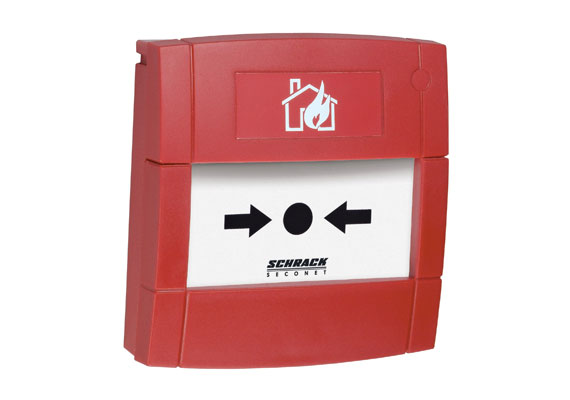

Manual Call Point

• Make - Shrack Seconet
• Model - MCP545X
• Type - Addressable
• Protection Class IP24/67
• Approval - VDS

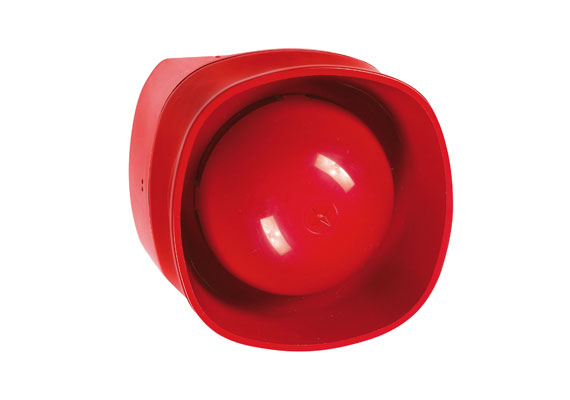

Hooter/Sounder

• Make - Shrack Seconet
• Model - BX-SOL
• Type - Addressable
 Type/Loop powered
• Protection Class IP21c
• Approval - VDS

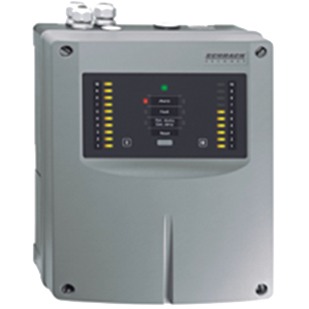

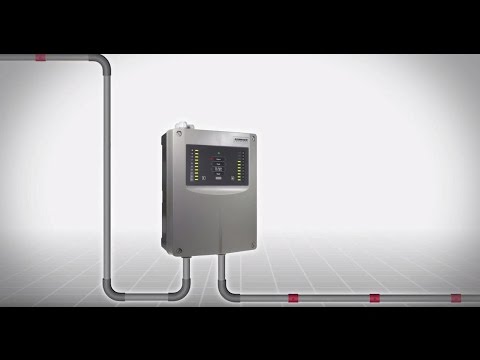

Aspiration Smoke Detection System

• Early detection of fires
by means of an active system (air aspirating) and an increased sensitivity of the smoke detectors.
• Restricted access (due to construction)
High-bay warehouses, halls, hangars), elevator shafts, hollow floors, hollow ceilings, etc.
• Disturbances due to operation
Strong air currents, temperature, humidity and vapours, dust, radiation, etc.
• Aesthetic Demands

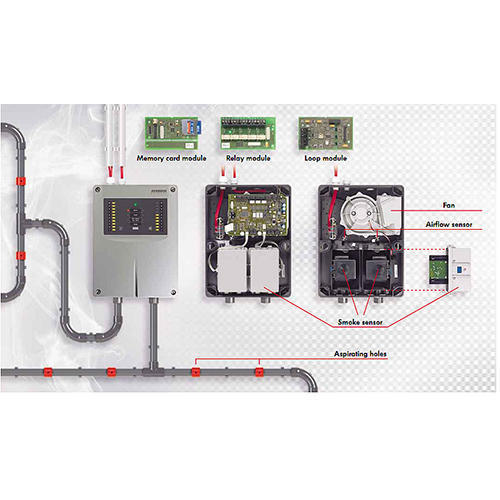

Features

• High Performance Fan
• Highly Sensitive Smoke Sensor
• Highly Sensitive Airflow Sensor
• Control Unit Housing with 2 channels
• 1-2 Independent Sampling tube Network with multiple sampling holes

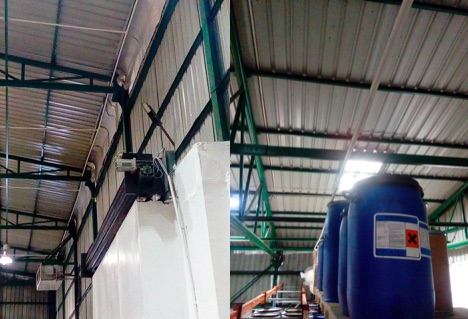

Aspiration Smoke Detection Warehouses

LISTEC

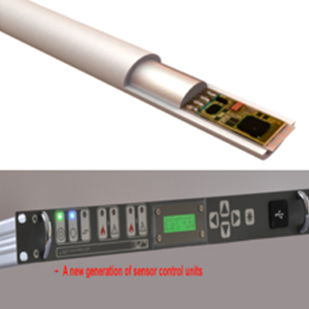

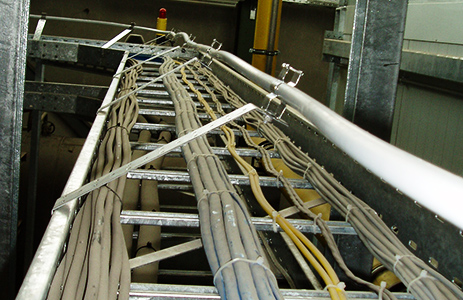

Intelligent Linear Heat Detection System

Features

• Individually addressable temperature measuring points.
• Temperature Measurement Resolution : 0.1Deg C.
• Up to 350 sensors and 3,200 m length.
• Measures temperature from -40° to +85°C (up to +200 for short periods).
• MODBUS o/p for interfacing with SCADA/ DCS.

Applications

• Cable trays Outside and Inside the Plant
• Lift Shaft
• Electrical Panels (LT/ HT)
• Cold Storage
• Parking Facilities
• Food Industry
• Converyor System
