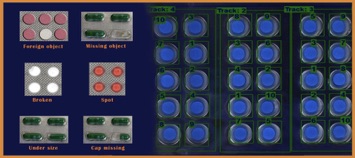

Applications

• Missing tablet/ capsule
• Cracked / broken tablets
• Chipped tablets
• Spotted defects on tablets
• Foreign object
• Color Variation
• Over size and under size tablets
• Cap/Body missing in capsules
• Multiple objects in pocket
• Object Outside cavity

Technical Specifications

• Accuracy : Down to 10µm pinhole diameter
• Line Speed : Max 1800 Mtr/Hour
• Inspection Area : 240/300/350 mm cavity
• Illumination : IR Light
• Operational Power : +24v DC
• Dimension : 395(L) x65(W) x300(H)
• Power consumption : 10watt
• Suitable operating temperature : 0° to 70° C
• Material of Construction : Anodized Aluminium housing
• Display : LCD Display with Indication LEDs
• System Output : Different type of signals for integration

Features

• Failsafe application to detect micro point hole which cannot be detected even by optical or manual detection.
• Solid state, automatic, reliable and high-speed inspection system.
• User friendly operations
• Quick machine setting for increasing machine output with LCD Display of very superior resolution.
• Detects many defects like pin holes, foil fractures, cracks, pores contoured cold forms etc.
• Inspects cavity forms as well flat materials.
• Sensitivity of the system can be adjusted according to the requirement for detecting. micron holes at suppressed speed and resolution.
• Extra controller is not required for offset rejection.
• Pulse time of output can be adjusted.
• Rejection counter is viewable on LCD screen.

Features

• Barcode , Pharma code and OCR can be done through single camera.
• GigE or USB based raw camera.
• Camera starts from 22 FPS and 1.3 MP
• High speed camera with robust operation.
• High speed Digital signal processor for I/O operations
• Variety of rejection systems.
• High power and high intensity illumination.
• Efficient optics for better inspection.

Defects

• Burnt /Over heated
• Partial Sealing
• Askew
• Missing of WAD.
• TOM Cut.
• Dark Spot
• Side shrink

21 CFR User Compliant Software with Multi level Protection
